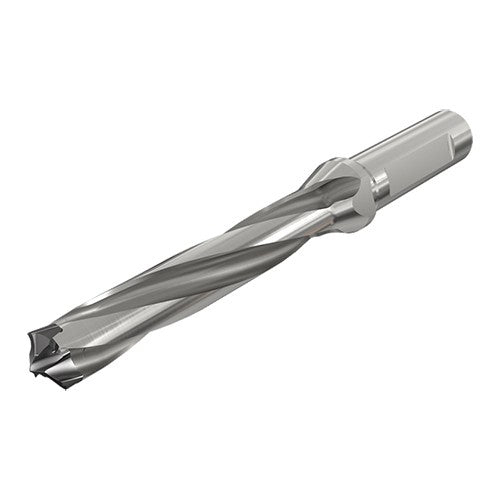

D3N 230-115-32A-5D
Item #: EH323335725
Brand: Iscar
Model #: 3335725
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 23 mm |
| Protruding Length (LPR) | 162.5 mm |
| Usable Length (LU) | 119.91 mm |
| Functional Length (LF) | 157.59 mm |
| Length Group | 5D |
| Overall Length (OAL) | 222.5 mm |
| Shank Type | Weldon |
| Shank Length (LS) | 60 mm |
| Application | | Drilling | |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 32 mm |
| Master Insert Identification (MIID) | H3P 230 |
| Insert Seat Size Code (SSC) | 23 |
| Point Length (PL) | 4.91 mm |
| Cutting Diameter Minimum (DCN) | 23 mm |
| Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 23.9 mm |
| Flange Diameter (DF) | 42 mm |
