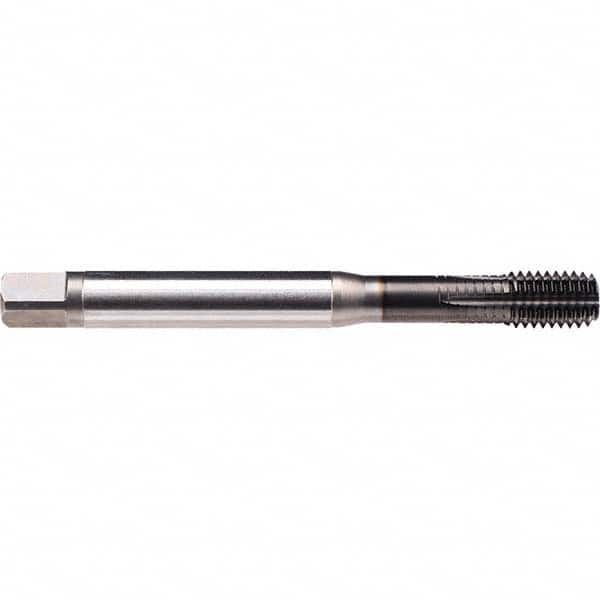

Emuge - M10x1.50 Metric 6HX Bottoming Thread Forming Tap
Item #: 16560625
Brand: Emuge
Model #: B531Y700.0100
Features and Benefits
Bottoming chamfers are used for threading blind holes to the bottom. They have 1 to 2 threads.
GLT-8 coatings are diamond-like coatings and provide a hard surface for good thermal protection as well as high surface lubricity. Ideal for machining nonferrous materials and aluminum. GLT-8 is a proprietary coating exclusive to Emuge.
Powdered Metal (PM) is tougher and more cost effective than solid carbide. It is commonly used on highly abrasive materials including high silicon aluminums.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M10x1.50 |
| Class of Fit | 6HX |
| Thread Limit | D5 |
| Chamfer | Bottoming |
| Finish/Coating | GLT-8 |
| Material | Powdered Metal High Speed Steel |
| Overall Length (mm) | 100.00 |
| Thread Standard | Metric ;M |
| Neck Length (mm) | 39 |
| Tapping Depth (mm) | 30 |
| Thread Direction | Right Hand |
| Shank Diameter (mm) | 10.00 |
| Through Coolant | Yes |
