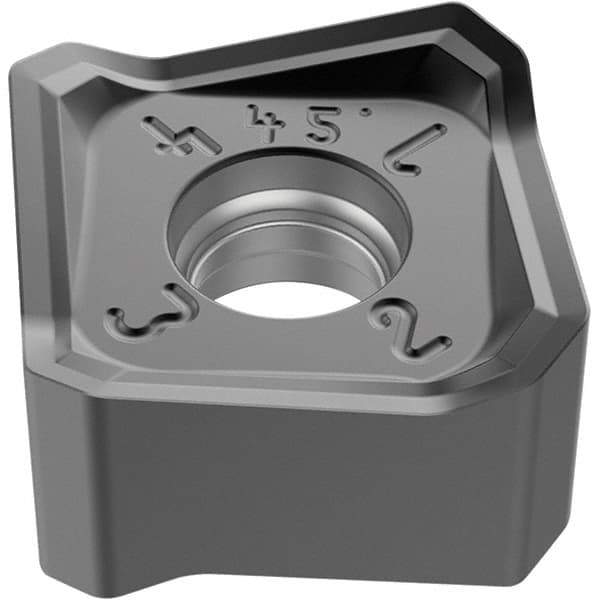

Seco - SNMX1407 M16 Grade MS2500 Carbide Milling Insert - TiCN/Al2O3 Finish, 6.59mm Thick, 14mm Inscribed Circle
Item #: 98986953
Brand: Seco
Model #: 03213566
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNMX |
| Insert Size | 1407 |
| Material | Carbide |
| Material Grade | C3 |
| Manufacturer's Grade | MS2500 |
| Coating | TiCN/Al2O3 |
| Width (mm) | 14.00 |
| Length (mm) | 14.00 |
| Inscribed Circle (mm) | 14.00 |
| Thickness (mm) | 6.59 |
| Corner Radius (mm) | 0.00 |
| Hole Diameter (mm) | 5.04 |
| Relief Angle | 0.000 |
| Rake Angle | 20 |
| Rake | Negative |
| Coating Process | CVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Right Hand |
| Chipbreaker | M16 |
| Cutting Edge Style | Chamfered & Honed |
