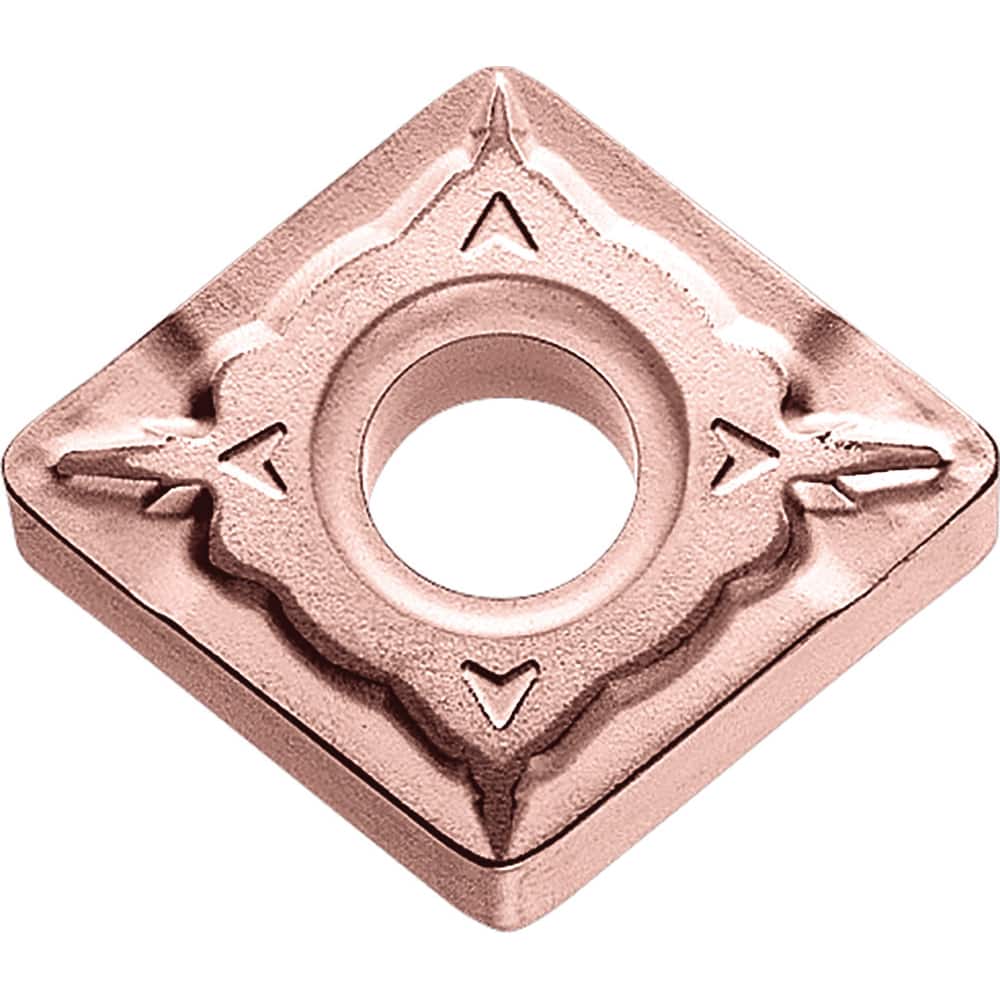

Kyocera - CNMG120408WQ CA315 Carbide Turning Insert
Item #: 98482177
Brand: Kyocera
Model #: 8848706
Product Specifications
| Insert Style | CNMG |
| Insert Size | 432 |
| Material | Carbide |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Manufacturer's Grade | CA315 |
| Coating | TiCl2O3/Ti |
| Chip Breaker | WQ |
| Hole Diameter (Decimal Inch) | 0.2031 |
| ISO Number | CNMG120408WQ |
| Rake | Negative |
| Relief Angle | 0.000 |
| Coating Process | CVD |
| Manufacturers Catalog Number | CNMG432WQCA315 |
| Primary Workpiece Material | K |
| Included Angle | 80 |
| Insert Hand | Neutral |
| Shape | Diamond |
