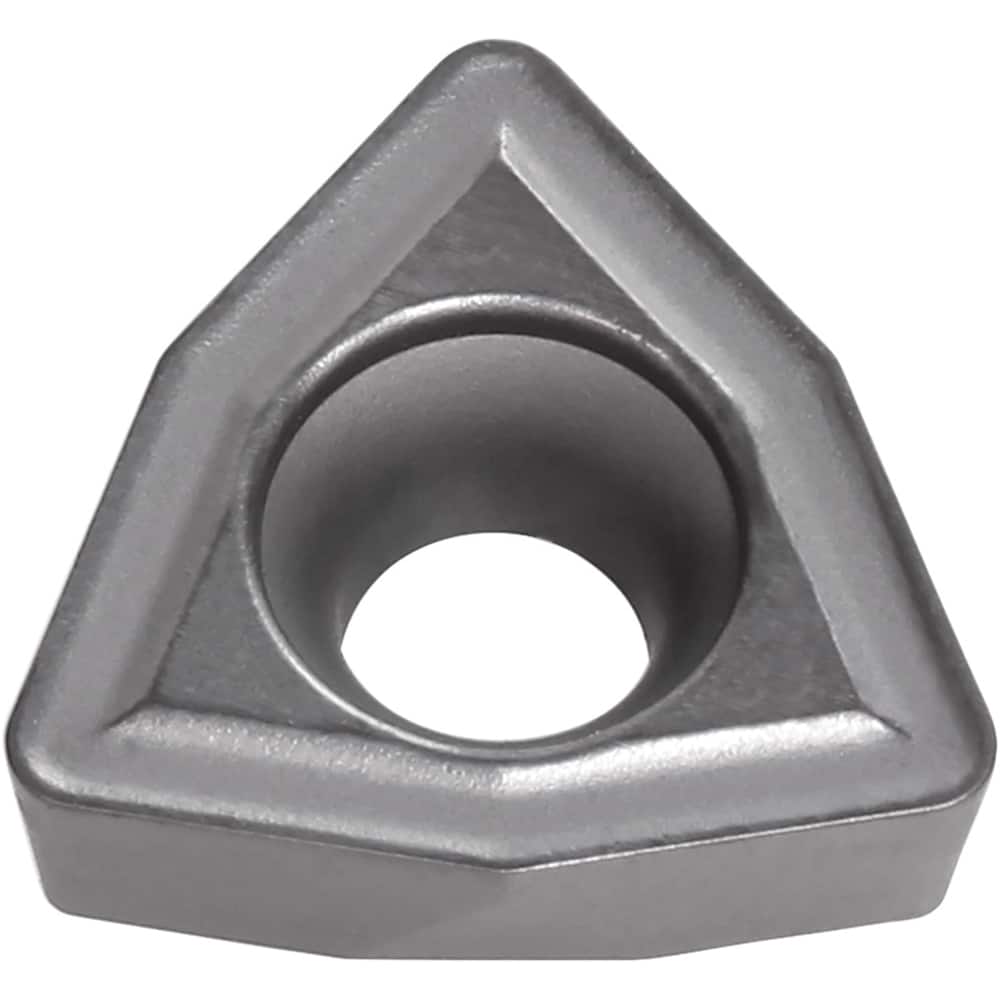

Kyocera - WCMX040204M1AKW10 KW10 Carbide Indexable Drill Insert
Item #: 95611430
Brand: Kyocera
Model #: 8850516
Product Specifications
| Insert Style | WCMX |
| Insert Size | 040204 |
| Material | Carbide |
| Manufacturer's Grade | KW10 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (mm) | 2.3900 |
| Thickness (Decimal Inch) | 0.0941 |
| Corner Radius (mm) | 0.40 |
| Shape | Trigon |
| Primary Workpiece Material | N |
| Hole Diameter (mm) | 2.7900 |
| Relief Angle | 7.000 |
| Included Angle | 80 |
| Coating | Uncoated |
| Coating Process | Uncoated |
| Cutting Direction | Right Hand |
| Chipbreaker | M1A |
| Manufacturers Catalog Number | WCMX040204M1AKW10 |
| Series | OTM Drilling Inserts |
