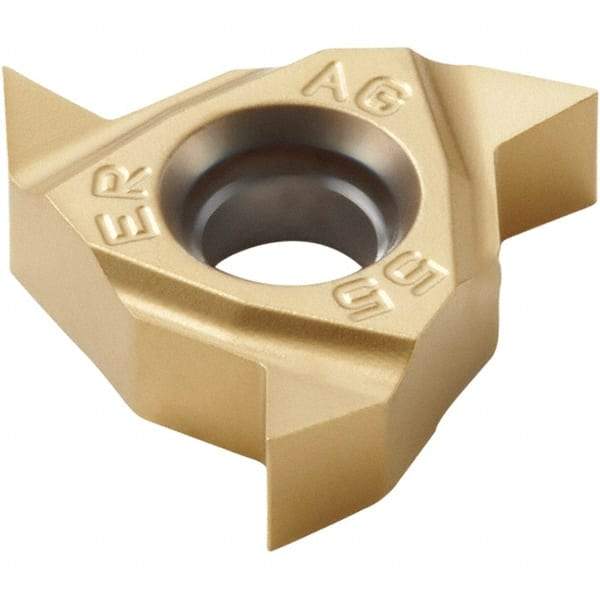

Seco - 16ER External Right Hand 55° V Laydown Threading Insert - Grade TTP2050, TiAlN/TiSiN Coated Carbide
Item #: 94588308
Brand: Seco
Model #: 03245468
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | 16ER |
| Insert Hand | Right Hand |
| Thread Type | External |
| Thread Standard | 55 V |
| Material Grade | Micrograin |
| Manufacturer's Grade | TTP2050 |
| External Threads Per Inch | 8-14 |
| External Pitch (mm) | 1.75-3.0 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Decimal Inch) | 0.1366 |
| Included Angle of Threading Tip | 55 |
| Hole Diameter (mm) | 4.00 |
| Coating | TiAlN/TiSiN |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0080 |
| Cutting Edge to Theoretical Edge Length (Decimal Inch) | 0.650 |
| Face of Insert to Tip Centerline (Decimal Inch) | 0.050 |
| Chipbreaker | A |
| Number of Teeth Per Side | 3 |
| Insert Size | 16 |
