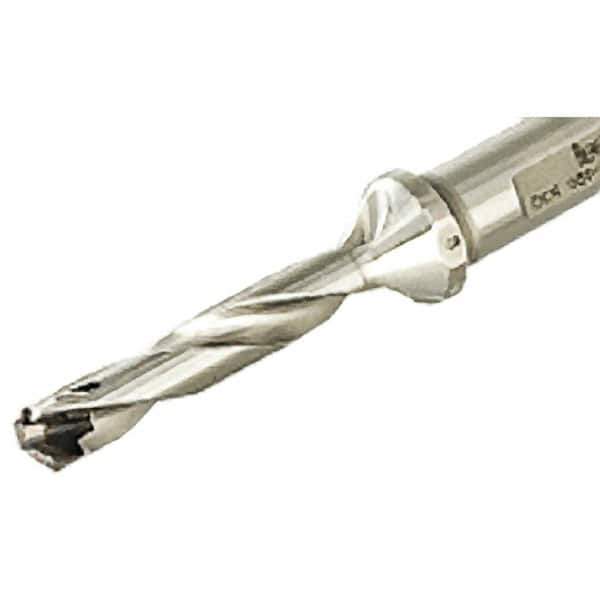

Iscar - 30mm to 30.9mm Diam, 3xD, 90mm Max Depth, 40mm Shank Diam, 205.4mm OAL, Replaceable-Tip Drill - FCP, HCP-IQ, ICK, ICK-2M, ICM, ICP, iCP-2M Insert, 92938935 Toolholder, Series SumoCham
Item #: 92938935
Brand: Iscar
Model #: 3260092
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (mm) | 30.00 |
| Minimum Drill Diameter (Decimal Inch) | 1.1811 |
| Maximum Drill Diameter (mm) | 30.90 |
| Maximum Drill Diameter (Decimal Inch) | 1.2165 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 3.5433 |
| Maximum Drill Depth (mm) | 90.00 |
| Shank Diameter (mm) | 40.00 |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Insert Style | FCP; HCP-IQ; ICK; ICK-2M; ICM; ICP; iCP-2M |
| Toolholder Style | DCN A |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (mm) | 137.40 |
| Body Length (Decimal Inch) | 5.4095 |
| Overall Length (mm) | 205.40 |
| Overall Length (Decimal Inch) | 8.0866 |
| Shank Length (mm) | 68.00 |
| Shank Length (Decimal Inch) | 2.6772 |
