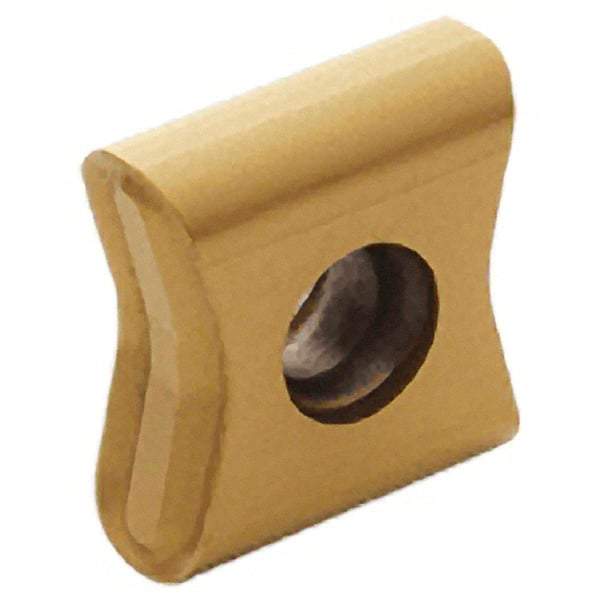

Iscar - LNAT150632 MM Grade IC4100 Carbide Milling Insert - TiCN/Al2O3/TiN Finish, 0.5465" Thick, 3.2mm Corner Radius
Item #: 91862037
Brand: Iscar
Model #: 5605433
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LNAT |
| Insert Size | 150632 |
| Material | Carbide |
| Manufacturer's Grade | IC4100 |
| Coating | TiCN/Al2O3/TiN |
| Width (Decimal Inch) | 0.2362 |
| Length (Decimal Inch) | 0.5906 |
| Thickness (Decimal Inch) | 0.5465 |
| Corner Radius (Decimal Inch) | 0.1260 |
| Corner Radius (mm) | 3.20 |
| Relief Angle | 0.000 |
| Coating Process | CVD |
| Included Angle | 90 |
| Shape | Rectangle |
| Chipbreaker | MM |
| Maximum Depth of Cut (mm) | 7.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2756 |
| ISO Number | LNAT 150616PN-N-MM |
