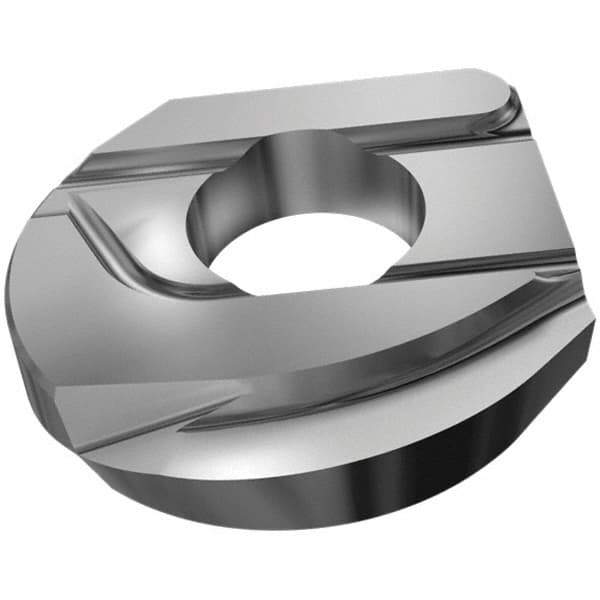

Iscar - HCRD160 QP Grade IC928 Carbide Milling Insert - TiAlN Finish, 3.37mm Thick, 16mm Inscribed Circle, 8mm Corner Radius
Item #: 91172379
Brand: Iscar
Model #: 5605224
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HCR |
| Insert Size | D160 |
| Material | Carbide |
| Manufacturer's Grade | IC928 |
| Coating | TiAlN |
| Inscribed Circle (mm) | 16.00 |
| Thickness (mm) | 3.37 |
| Corner Radius (mm) | 8.00 |
| Coating Process | PVD |
| Shape | Ball Nose Rounded Tip |
| Chipbreaker | QP |
| Maximum Depth of Cut (mm) | 11.30 |
| ISO Number | HCR D160-QP |
