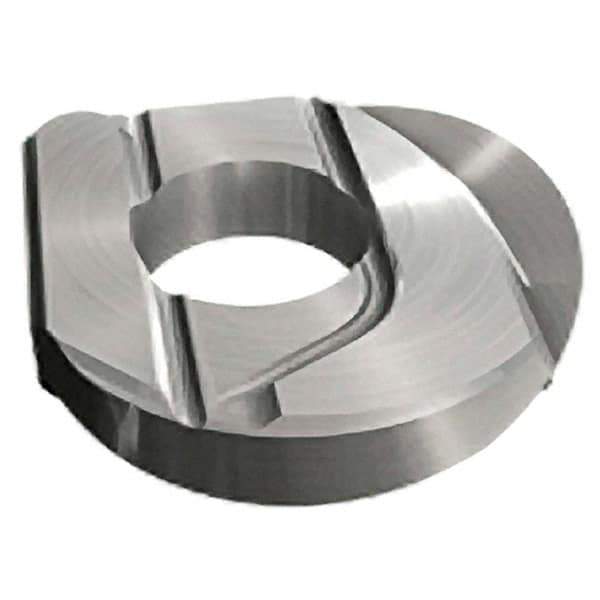

Iscar - HBRD250 QF Grade IC908 Carbide Milling Insert - TiAlN Finish, 5.4mm Thick, 25mm Inscribed Circle, 12.5mm Corner Radius
Item #: 91172213
Brand: Iscar
Model #: 5604258
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HBR |
| Insert Size | D250 |
| Material | Carbide |
| Manufacturer's Grade | IC908 |
| Coating | TiAlN |
| Inscribed Circle (mm) | 25.00 |
| Thickness (mm) | 5.40 |
| Corner Radius (mm) | 12.50 |
| Coating Process | PVD |
| Shape | Ball Nose |
| Chipbreaker | QF |
| Maximum Depth of Cut (mm) | 16.70 |
| ISO Number | HBR D250-QF |
