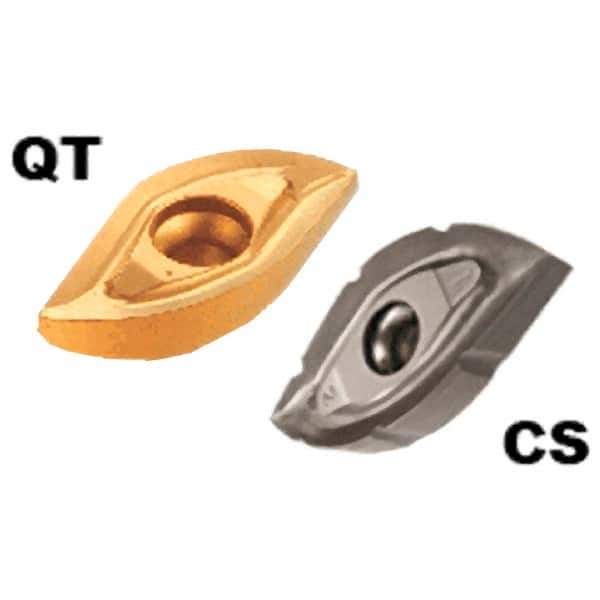

Iscar - BCR400 QT Grade IC328 Carbide Milling Insert - TiCN Finish, 7mm Thick, 20mm Corner Radius
Item #: 91172007
Brand: Iscar
Model #: 5603248
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | BCR |
| Insert Size | 400 |
| Material | Carbide |
| Manufacturer's Grade | IC328 |
| Coating | TiCN |
| Width (mm) | 18.80 |
| Length (mm) | 35.40 |
| Thickness (mm) | 7.00 |
| Corner Radius (mm) | 20.00 |
| Coating Process | PVD |
| Shape | Ball Nose Rounded Tip |
| Chipbreaker | QT |
| Maximum Depth of Cut (mm) | 14.00 |
| ISO Number | BCR D400-QT |
