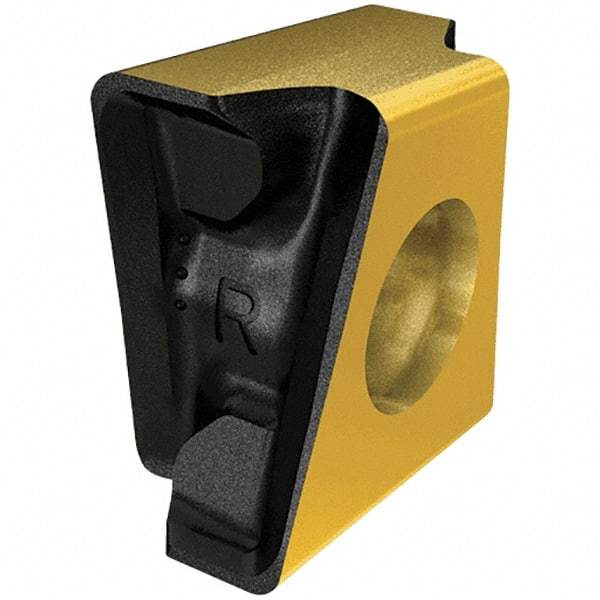

Iscar - LNHT1106 HT Grade IC910 Carbide Milling Insert - AlTiN Finish, 0.433" Thick, 0.8mm Corner Radius
Item #: 91170290
Brand: Iscar
Model #: 5603956
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LNHT |
| Insert Size | 1106 |
| Material | Carbide |
| Manufacturer's Grade | IC910 |
| Coating | AlTiN |
| Width (Decimal Inch) | 0.2350 |
| Length (Decimal Inch) | 0.4394 |
| Thickness (Decimal Inch) | 0.4330 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Relief Angle | 0.000 |
| Rake Angle | 24 |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Rectangle |
| Insert Hand | Neutral |
| Chipbreaker | HT |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| ISO Number | LNHT 1106PN-N-HT |
