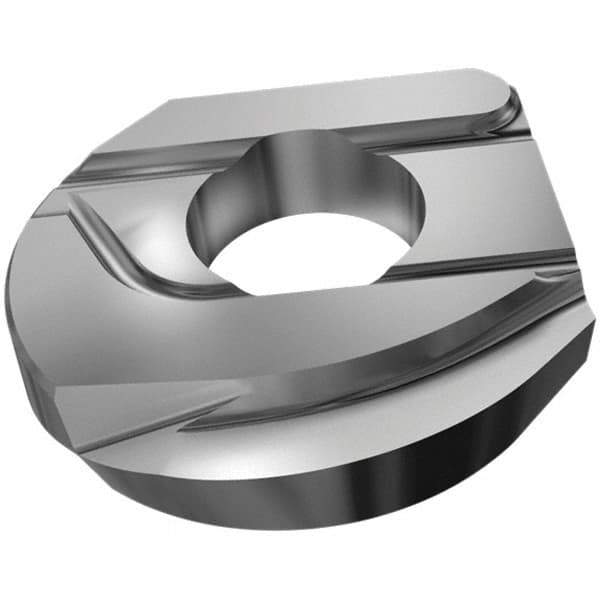

Iscar - HCRD120 QP Grade IC928 Carbide Milling Insert - TiAlN Finish, 2.6mm Thick, 12mm Inscribed Circle, 6mm Corner Radius
Item #: 91169607
Brand: Iscar
Model #: 5605312
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HCR |
| Insert Size | D120 |
| Material | Carbide |
| Manufacturer's Grade | IC928 |
| Coating | TiAlN |
| Inscribed Circle (mm) | 12.00 |
| Thickness (mm) | 2.60 |
| Corner Radius (mm) | 6.00 |
| Coating Process | PVD |
| Shape | Ball Nose Rounded Tip |
| Chipbreaker | QP |
| Maximum Depth of Cut (mm) | 9.80 |
| ISO Number | HCR D120-QP |
