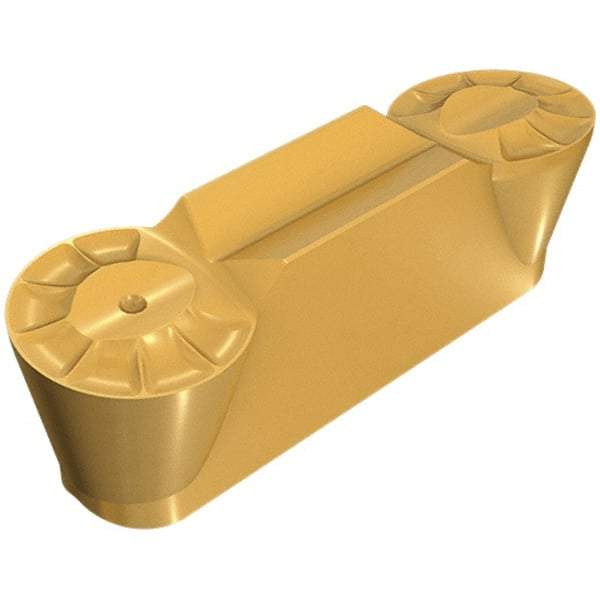

Iscar - 5025HGPL Y Grade IC808, 5mm Cutting Width Carbide Grooving Insert - 2.5mm Max Depth of Cut, Left Hand, 2.5mm Corner Radius, TiAlN Finish
Item #: 91138420
Brand: Iscar
Model #: 6200411
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HGPL |
| Insert Size | 5025 |
| Material | Carbide |
| Cutting Width (mm) | 5.00 |
| Cutting Width (Decimal Inch) | 0.1970 |
| Maximum Depth of Cut (mm) | 2.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0984 |
| Manufacturer's Grade | IC808 |
| Coating | TiAlN |
| Insert Hand | Left Hand |
| Relief Angle | 7 |
| Chipbreaker | Y |
| Multi-Use Tool | No |
| Corner Radius (mm) | 2.50 |
| Corner Radius (Decimal Inch) | 0.0984 |
| Coating Process | PVD |
| Overall Length (mm) | 19.00 |
| Overall Length (Decimal Inch) | 0.7480 |
| Series | Heliface |
