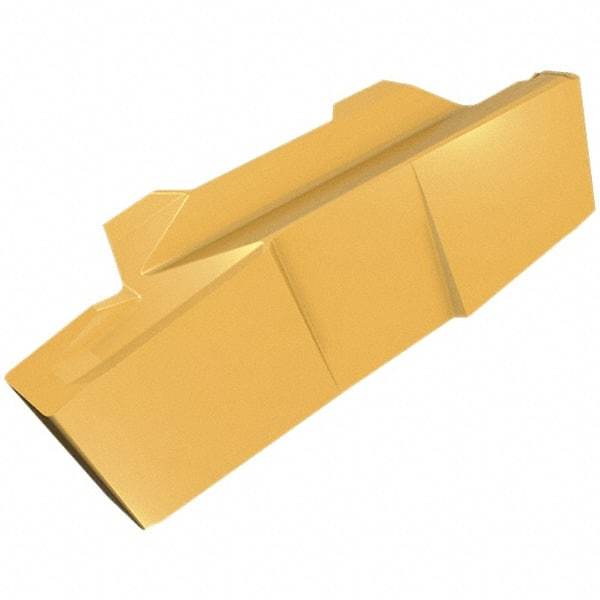

Iscar - 239119GIP X Grade IC808, 2.39mm Cutting Width Carbide Grooving Insert - 3.9mm Max Depth of Cut, Right Hand, 1.19mm Corner Radius, TiAlN Finish
Item #: 91137828
Brand: Iscar
Model #: 6404145
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIP |
| Insert Size | 239119 |
| Material | Carbide |
| Cutting Width (mm) | 2.39 |
| Cutting Width (Decimal Inch) | 0.0940 |
| Maximum Depth of Cut (mm) | 3.90 |
| Maximum Depth of Cut (Decimal Inch) | 0.1535 |
| Manufacturer's Grade | IC808 |
| Coating | TiAlN |
| Insert Hand | Right Hand |
| Relief Angle | 7 |
| Chipbreaker | X |
| Multi-Use Tool | No |
| Corner Radius (mm) | 1.19 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Coating Process | PVD |
| Overall Length (mm) | 15.30 |
| Series | Cut Grip |
