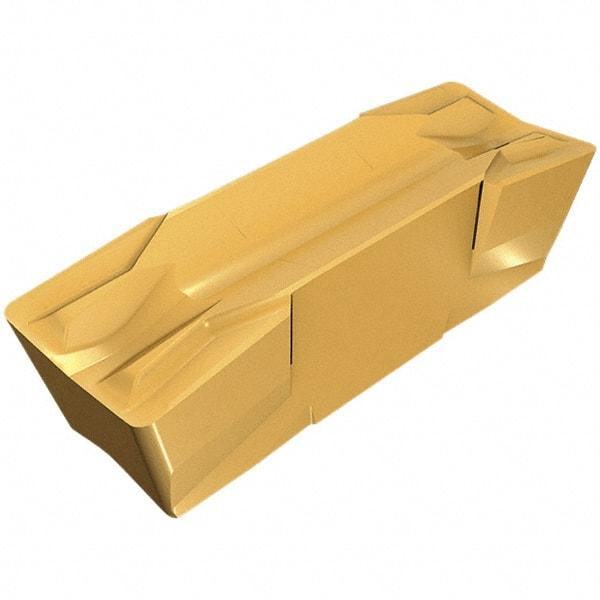

Iscar - 800120GIF E Grade IC5010, 8mm Cutting Width Carbide Grooving Insert - 4.8mm Max Depth of Cut, Neutral, 1.2mm Corner Radius, TiCN/Al2O3/TiN Finish
Item #: 91137695
Brand: Iscar
Model #: 6404288
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIF |
| Insert Size | 800120 |
| Material | Carbide |
| Cutting Width (mm) | 8.00 |
| Cutting Width (Decimal Inch) | 0.3150 |
| Maximum Depth of Cut (mm) | 4.80 |
| Maximum Depth of Cut (Decimal Inch) | 0.1890 |
| Manufacturer's Grade | IC5010 |
| Coating | TiCN/Al2O3/TiN |
| Insert Hand | Neutral |
| Relief Angle | 7 |
| Chipbreaker | E |
| Multi-Use Tool | Yes |
| Multi-Use Application | Turning |
| Corner Radius (mm) | 1.20 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Coating Process | CVD |
| Overall Length (mm) | 30.00 |
| Overall Length (Decimal Inch) | 1.1811 |
| Series | Cut Grip |
