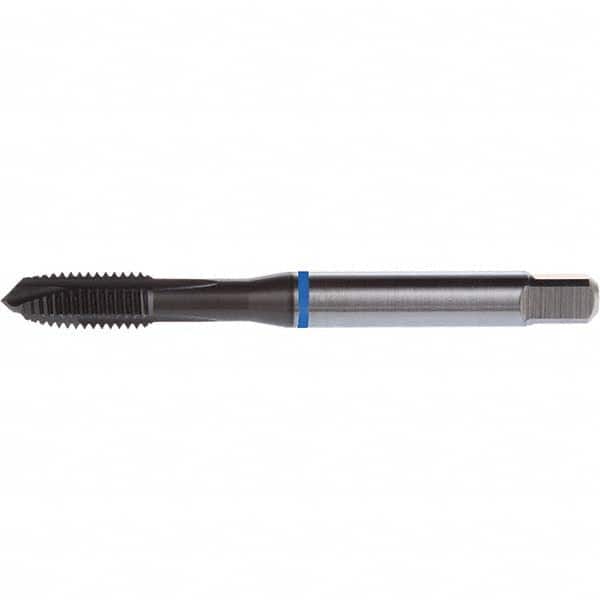

DORMER - 7/8-14 UNF 2B/3B 4 Flute TiAlN/WC/C Finish PM Cobalt Spiral Point Tap
Item #: 16949091
Brand: DORMER
Model #: 7350313
Features and Benefits
Plug chamfers are the most commonly used chamfer and are designed for efficiently threading through and blind holes. They have 3 to 5 threads.
Titanium aluminum nitride plus tungsten carbide and carbon (TiAlN + WC/C) is a wear resistant coating that protects cutting edges. It is commonly used on difficult-to-machine materials.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | 7/8-14 |
| Number of Flutes | 4 |
| Chamfer | Plug |
| Class of Fit | 2B/3B |
| Thread Limit | H6 |
| Finish/Coating | TiAlN/WC/C |
| Material | PM Cobalt |
| Through Coolant | Through Coolant |
| Thread Direction | Right Hand |
| Overall Length (Decimal Inch) | 4.9210 |
| Thread Standard | UNF |
| Thread Length (Decimal Inch) | 0.9060 |
| Series/List | E913 |
| Shank Diameter (Decimal Inch) | 0.6970 |
| Square Size (Decimal Inch) | 0.5200 |
| Material Application | Stainless Steel |
