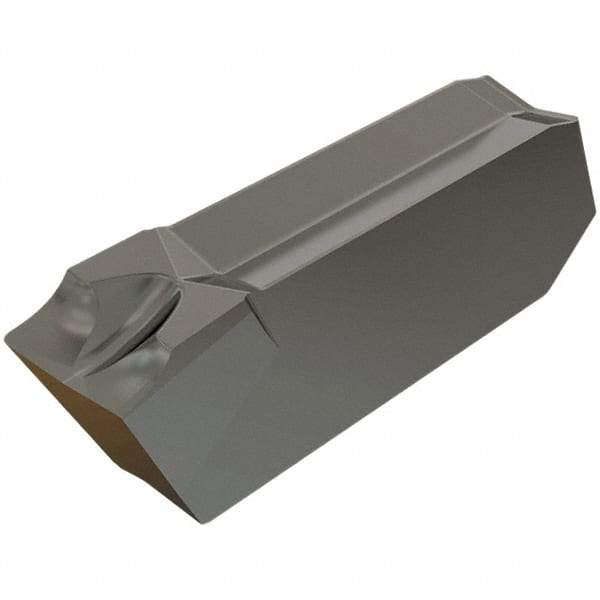

Iscar - 22J8GIM Grade IC328, 2.2mm Cutting Width Carbide Grooving Insert - Left Hand, 0.17mm Corner Radius, TiCN Finish
Item #: 86837564
Brand: Iscar
Model #: 6403194
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIM |
| Insert Size | 22J8 |
| Material | Carbide |
| Cutting Width (mm) | 2.20 |
| Cutting Width (Decimal Inch) | 0.0866 |
| Manufacturer's Grade | IC328 |
| Coating | TiCN |
| Insert Hand | Left Hand |
| Lead Angle | 8 |
| Relief Angle | 7 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Milling; Parting |
| Corner Radius (mm) | 0.17 |
| Corner Radius (Decimal Inch) | 0.0067 |
| Coating Process | PVD |
| Overall Length (mm) | 15.30 |
| Overall Length (Decimal Inch) | 0.6024 |
| Series | Cut Grip |
| Overall Width (mm) | 2.20 |
| Overall Width (Decimal Inch) | 0.0866 |
