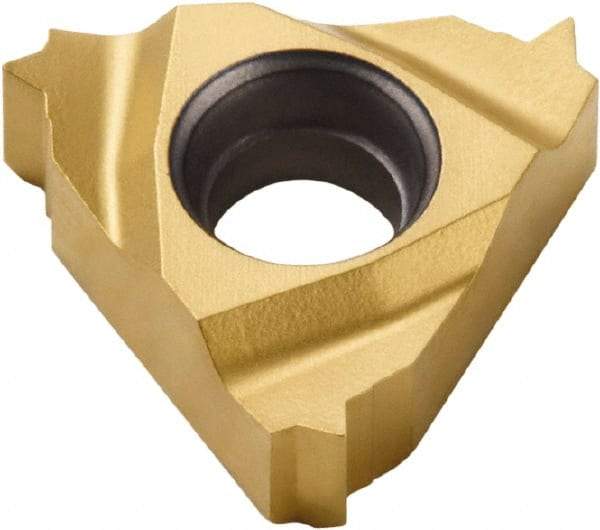

Seco - 09NR Internal Right Hand 48-16 Partial Profile 55° Laydown Threading Insert - Grade CP500, TiAlN/TiN Coated Carbide, 5.56mm Inscribed Circle
Item #: 84309889
Brand: Seco
Model #: 23822
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | 09NR |
| Insert Hand | Right Hand |
| Thread Type | Internal |
| Thread Standard | Partial Profile 55 |
| Manufacturer's Grade | CP500 |
| Threads Per Inch | 48-16 |
| Pitch (mm) | 0.50-1.50 |
| Inscribed Circle (mm) | 5.56 |
| Inscribed Circle (Decimal Inch) | 0.2189 |
| Thickness (Decimal Inch) | 0.0945 |
| Thickness (mm) | 2.40 |
| Coating | TiAlN/TiN |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0800 |
