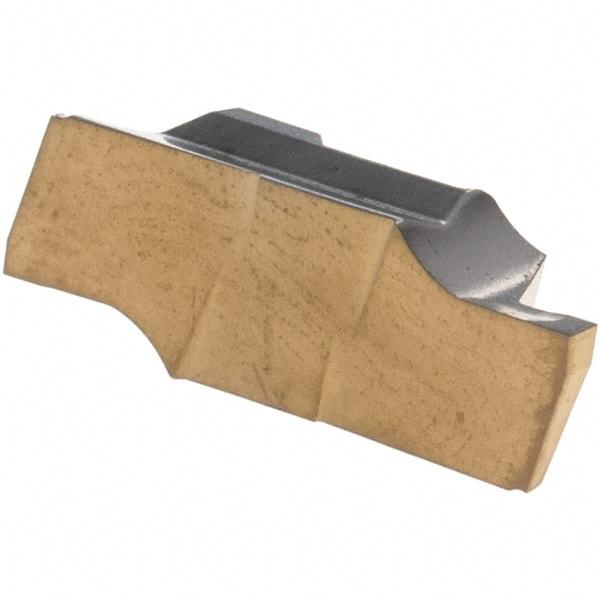

Iscar - 100000GIPI Grade IC830, 1mm Cutting Width Carbide Grooving Insert - 2mm Max Depth of Cut, Right Hand, AlTiN/TiN Finish
Item #: 81700023
Brand: Iscar
Model #: 6405047
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIPI |
| Insert Size | 100000 |
| Material | Carbide |
| Cutting Width (mm) | 1.00 |
| Cutting Width (Decimal Inch) | 0.0394 |
| Maximum Depth of Cut (mm) | 2.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Manufacturer's Grade | IC830 |
| Coating | AlTiN/TiN |
| Insert Hand | Right Hand |
| Relief Angle | 8 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Turning |
| Corner Radius (mm) | 0.00 |
| Corner Radius (Decimal Inch) | 0.0000 |
| Coating Process | PVD |
| Overall Length (mm) | 15.70 |
| Overall Length (Decimal Inch) | 0.6181 |
| Series | Cut Grip |
| Overall Width (mm) | 1.00 |
| Overall Width (Decimal Inch) | 0.0394 |
