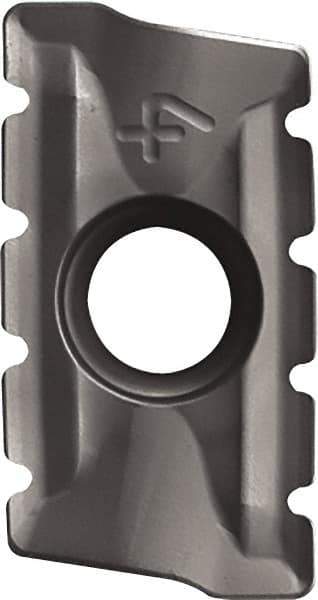

Kyocera - BDMT170408 N4 Grade PR1230 Carbide Milling Insert - Megacoat Finish, 4.9mm Thick, 0.8mm Corner Radius
Item #: 80864531
Brand: Kyocera
Model #: 8833914
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | BDMT |
| Insert Size | 170408 |
| Material | Carbide |
| Manufacturer's Grade | PR1230 |
| Coating | Megacoat |
| Width (mm) | 9.60 |
| Width (Decimal Inch) | 0.3780 |
| Length (mm) | 17.00 |
| Length (Decimal Inch) | 0.6693 |
| Thickness (mm) | 4.90 |
| Thickness (Decimal Inch) | 0.1929 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Relief Angle | 13.000 |
| Coating Process | PVD |
| Included Angle | 82 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | N4 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | BDMT170408ERN4 |
