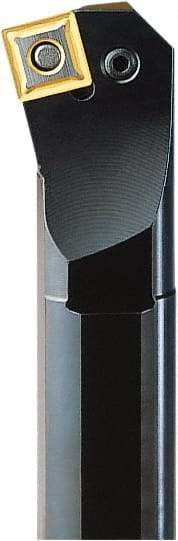

Seco - 30mm Min Bore Diam, 300mm OAL, 25mm Shank Diam, S-PSKN Indexable Boring Bar - 43mm Max Bore Depth, SN.. 1204.. Insert, Pin Lock Assembly Holding Method
Item #: 80477763
Brand: Seco
Model #: 00308
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S-PSKN |
| Series | Pin Lock |
| Minimum Bore Diameter (mm) | 30.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.1811 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 43.00 |
| Maximum Bore Depth (Decimal Inch) | 1.6929 |
| Overall Length (mm) | 300.00 |
| Overall Length (Decimal Inch) | 11.8110 |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Insert Compatibility | SN.. 1204.. |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Pin Lock Assembly |
| Rake | Negative |
| Lead Angle | 75 |
| Center to Cutting Edge (mm) | 17.00 |
| Center to Cutting Edge (Decimal Inch) | 0.6693 |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Insert Inscribed Circle (mm) | 12.70 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Rake Angle | -6 |
| Complete Insert Compatibility | SNGA 120408S-02020-L1-D; SNMA 120408; SNMA 120412; SNMA 120416; SNMG 1204; SNMG 120404-M3; SNMG 120408-M1; SNMG 120408-M3; SNMG 120408-M5; SNMG 120408-MF1; SNMG 120408-MF2; SNMG 120408-MF4; SNMG 120408-MR3; SNMG 120408-MR4; SNMG 120408-MR7; SNMG 120412-M3 |
| Toolholder Material | Steel |
