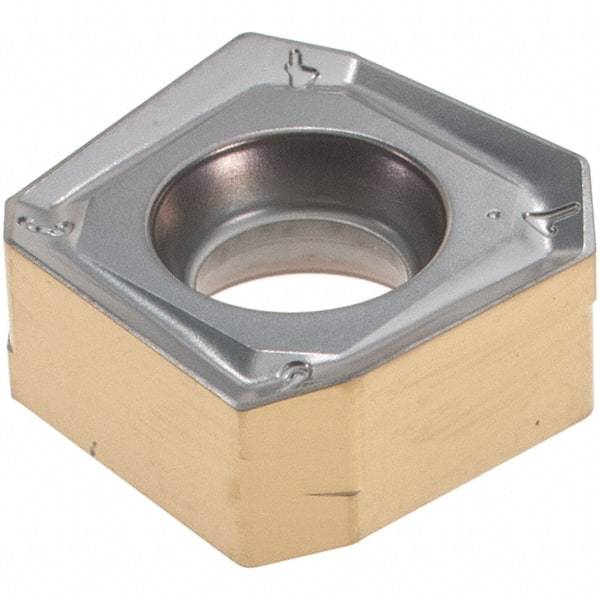

Iscar - S845 SNHU1305 MM Grade IC330 Carbide Milling Insert - TiCN/TiN Finish, 0.244" Thick, 13mm Inscribed Circle, 0.8mm Corner Radius
Item #: 80155609
Brand: Iscar
Model #: 5606298
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | S845 SNHU |
| Insert Size | 1305 |
| Material | Carbide |
| Manufacturer's Grade | IC330 |
| Coating | TiCN/TiN |
| Inscribed Circle (mm) | 13.00 |
| Inscribed Circle (Decimal Inch) | 0.5120 |
| Thickness (Decimal Inch) | 0.2440 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Relief Angle | 0.000 |
| Rake Angle | 24 |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Right Hand |
| Chipbreaker | MM |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| ISO Number | S845 SNHU 1305ANR-MM |
