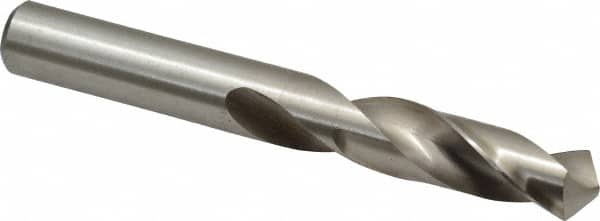

Screw Machine Length Drill Bit: 0.4688″ Dia, 118 °, High Speed Steel Bright/Uncoated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series R40
Item #: 78543337
Brand: Precision Twist Drill
Model #: 5998616
Product Specifications
| Drill Bit Size (Inch) | 15/32 |
| Tool Material | High Speed Steel |
| Cutting Direction | Right Hand |
| Coating/Finish | Bright/Uncoated |
| Drill Point Angle | 118 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Standard |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.4688 |
| Drill Bit Size (Decimal Inch) | 0.4688 |
| Overall Length (Inch) | 3-5/8 |
| Series | R40 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Drill Length Type | Screw Machine |
| Flute By Diameter Ratio | 2.5xD |
| Tool Performance | High Performance |
| Standards | ANSI |
| Flute Length (Inch) | 2-1/8 |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.4500 to 0.5000 |
| Specification Designation | ANSI |
