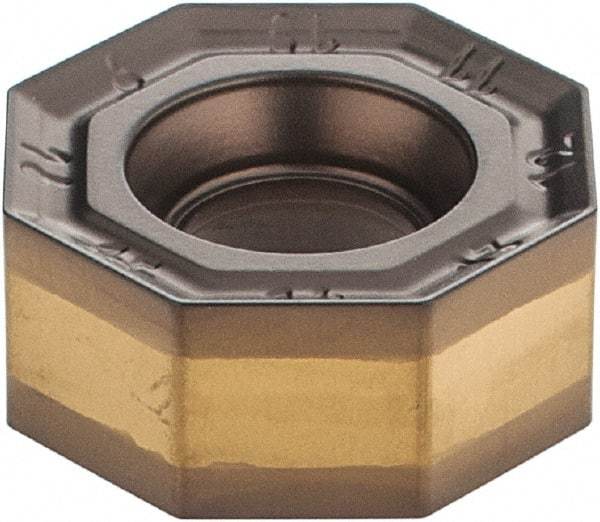

Iscar - ONMU050505 Grade IC5100 Carbide Milling Insert - TiCN/Al2O3 Finish, 0.2047" Thick, 13mm Inscribed Circle, 0.5mm Corner Radius
Item #: 77981157
Brand: Iscar
Model #: 5606053
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ONMU |
| Insert Size | 050505 |
| Material | Carbide |
| Manufacturer's Grade | IC5100 |
| Coating | TiCN/Al2O3 |
| Inscribed Circle (mm) | 13.00 |
| Inscribed Circle (Decimal Inch) | 0.5120 |
| Thickness (Decimal Inch) | 0.2047 |
| Corner Radius (Decimal Inch) | 0.0197 |
| Corner Radius (mm) | 0.50 |
| Relief Angle | 0.000 |
| Rake Angle | 26 |
| Coating Process | CVD |
| Included Angle | 135 |
| Shape | Octagon |
| Insert Hand | Neutral |
| Maximum Depth of Cut (mm) | 3.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.1378 |
| ISO Number | ONMU 050505-TN |
