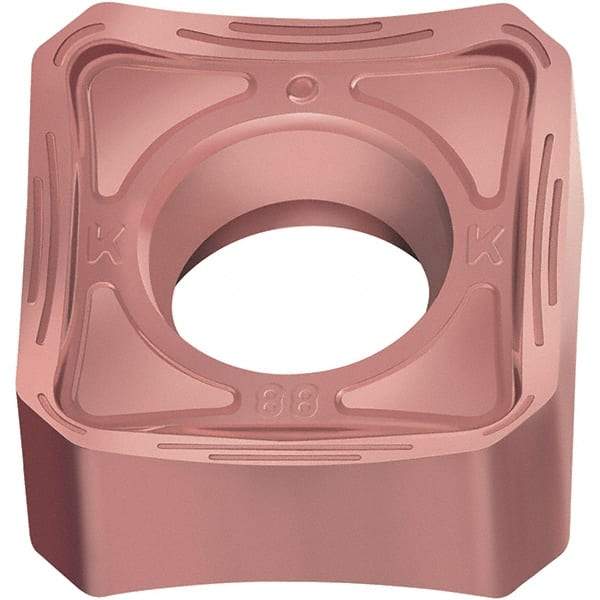

Walter - SNHX1205 K88 Grade WXN15 Carbide Milling Insert - TiCN Plus Finish, 0.252" Thick, 1/2" Inscribed Circle
Item #: 75441071
Brand: Walter
Model #: 5623813
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNHX |
| Insert Size | 1205 |
| Material | Carbide |
| Material Grade | N15 |
| Manufacturer's Grade | WXN15 |
| Coating | TiCN Plus |
| Length (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.2520 |
| Rake | Negative |
| Coating Process | PVD |
| Shape | Square |
| Insert Hand | Neutral |
| Chipbreaker | K88 |
| Manufacturers Catalog Number | SNHX1205ANN-K88 |
