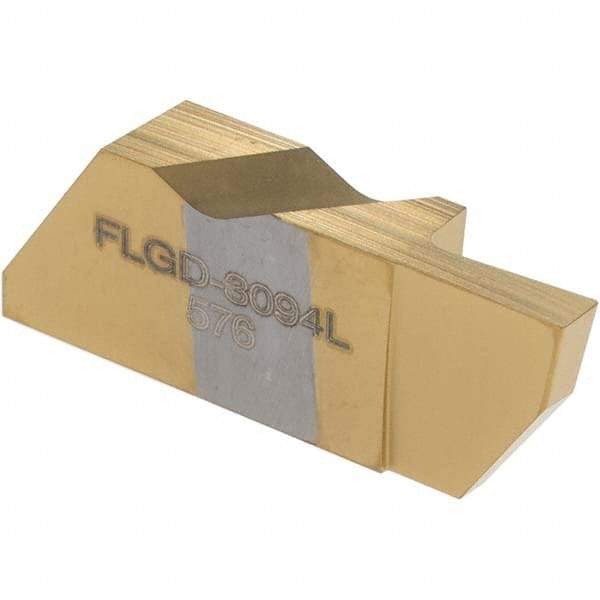

Tool-Flo - 3094FLGD Grade GP50, 2.39mm Cutting Width Carbide Grooving Insert - 1/4" Max Depth of Cut, Left Hand, 0.005 to 0.01" Corner Radius, TiN Finish
Item #: 75347146
Brand: Tool-Flo
Model #: 6334094LN4C
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | FLGD |
| Insert Size | 3094 |
| Material | Carbide |
| Cutting Width (mm) | 2.39 |
| Cutting Width (Decimal Inch) | 0.0940 |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Manufacturer's Grade | GP50 |
| Coating | TiN |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Cutting Height (Decimal Inch) | 0.3440 |
| Multi-Use Tool | No |
| Minimum Corner Radius (Decimal Inch) | 0.0050 |
| Maximum Corner Radius (Decimal Inch) | 0.0100 |
| Corner Radius (Decimal Inch) | 0.005-0.010 |
| Coating Process | PVD |
| Series | Flo-Lock |
| Manufacturers Catalog Number | FLGD-3094L |
| Insert Thickness (Decimal Inch) | 0.1950 |
