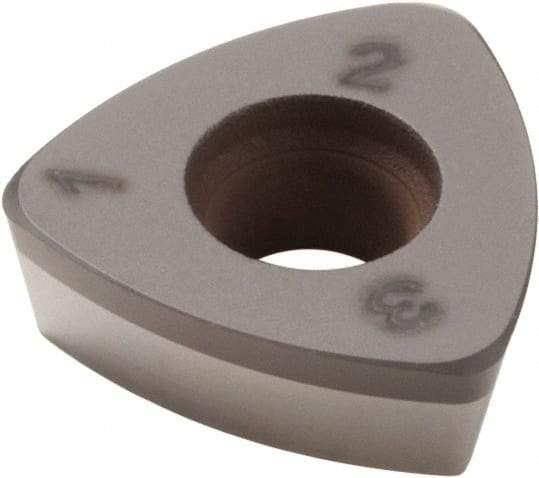

Seco - 218.19100 MD08 Grade CBN200 PCBN Milling Insert - Uncoated, 0.109" Thick, 0.278" Inscribed Circle, 0.031" Corner Radius
Item #: 73923302
Brand: Seco
Model #: 30102
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline cubic boron nitride (PCBN) is similar to diamond. It is commonly used on hardened steels, cast iron, carbide, nickel alloys and hard ferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | 218.19 |
| Insert Size | 100 |
| Material | PCBN |
| Manufacturer's Grade | CBN200 |
| Coating | Uncoated |
| Inscribed Circle (Decimal Inch) | 0.2780 |
| Thickness (Decimal Inch) | 0.1090 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Relief Angle | 12.000 |
| Rake Angle | 0 |
| Rake | Neutral |
| Shape | Trigon |
| Chipbreaker | MD08 |
| ISO Number | 218.19-100T-MD08 |
