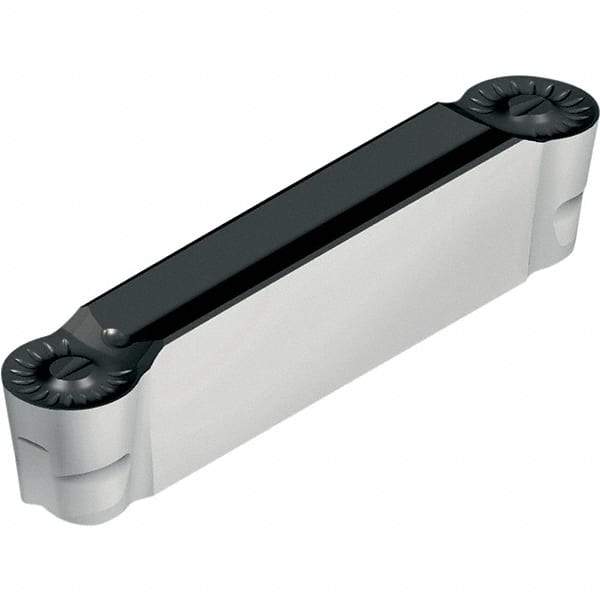

Walter - 2R1.20LGX Grade WTA33, 1.2mm Cutting Width Carbide Grooving Insert - Left Hand, TiCN/Al2O3 Finish
Item #: 71731269
Brand: Walter
Model #: 5009915
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GX |
| Insert Size | 2R1.20L |
| Material | Carbide |
| Cutting Width (mm) | 1.20 |
| Cutting Width (Decimal Inch) | 0.0472 |
| Material Grade | P10/K10 |
| Manufacturer's Grade | WTA33 |
| Coating | TiCN/Al2O3 |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Multi-Use Tool | No |
| Coating Process | CVD |
| Overall Length (mm) | 16.00 |
| Overall Length (Decimal Inch) | 0.6299 |
| Series | Tiger-tec |
| ISO Number | GX16-2R1.20L |
| Manufacturers Catalog Number | GX16-2R1.20L |
