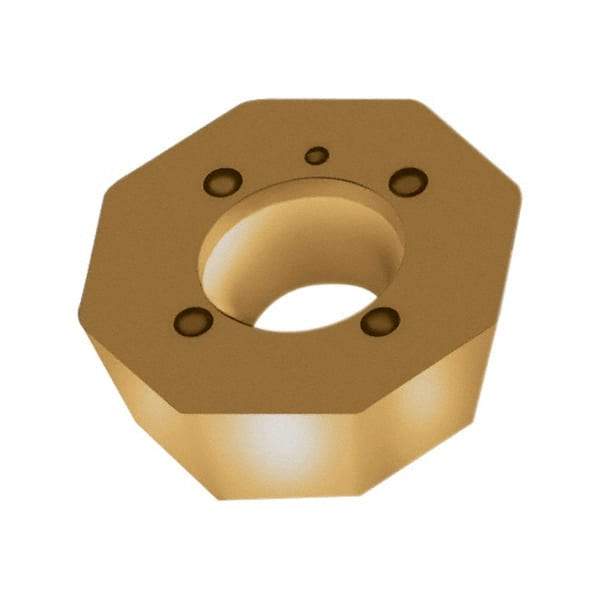

Walter - ODMW050408 A57 Grade WAK15 Carbide Milling Insert - TiCN/Al2O3/TiN Finish, 0.1874" Thick, 1/2" Inscribed Circle, 0.8mm Corner Radius
Item #: 71711535
Brand: Walter
Model #: 5015822
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ODMW |
| Insert Size | 050408 |
| Material | Carbide |
| Material Grade | K15 |
| Manufacturer's Grade | WAK15 |
| Coating | TiCN/Al2O3/TiN |
| Length (Decimal Inch) | 0.1969 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Rake | Positive |
| Coating Process | CVD |
| Shape | Octagon |
| Chipbreaker | A57 |
| Manufacturers Catalog Number | ODMW050408-A57 |
