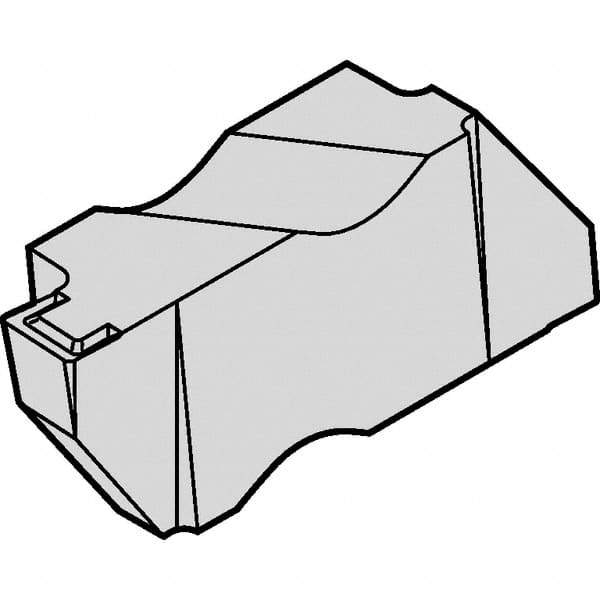

Kennametal - 3M250NG K Grade KCU25, 2.5mm Cutting Width Carbide Grooving Insert - 3.81mm Max Depth of Cut, Left Hand, 0.19mm Corner Radius, AlTiN Finish
Item #: 69437002
Brand: Kennametal
Model #: 4109722
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | NG |
| Insert Size | 3M250 |
| Material | Carbide |
| Cutting Width (mm) | 2.50 |
| Cutting Width (Decimal Inch) | 0.0984 |
| Maximum Depth of Cut (mm) | 3.81 |
| Maximum Depth of Cut (Decimal Inch) | 0.1500 |
| Material Grade | C2/C6 |
| Manufacturer's Grade | KCU25 |
| Coating | AlTiN |
| Insert Hand | Left Hand |
| Cutting Height (mm) | 8.74 |
| Cutting Height (Decimal Inch) | 0.3441 |
| Insert Seat Size | 3 |
| Chipbreaker | K |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.19 |
| Corner Radius (Decimal Inch) | 0.0075 |
| Coating Process | PVD |
| Series | Top Notch |
| Overall Width (mm) | 4.98 |
| Overall Width (Decimal Inch) | 0.1960 |
| Included Angle | 55 |
