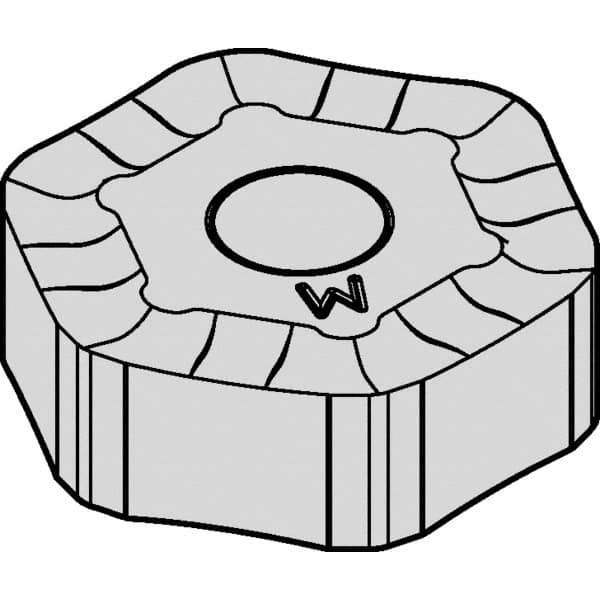

Kennametal - HNHX53 GE Grade KCK15 Carbide Milling Insert - TiN/TiCN/Al2O3 Finish, 0.219" Thick, 0.638" Inscribed Circle, 3/64" Corner Radius
Item #: 68467141
Brand: Kennametal
Model #: 5616167
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HNHX |
| Insert Size | 53 |
| Material | Carbide |
| Manufacturer's Grade | KCK15 |
| Coating | TiN/TiCN/Al2O3 |
| Length (Decimal Inch) | 0.3510 |
| Inscribed Circle (Decimal Inch) | 0.6380 |
| Thickness (Decimal Inch) | 0.2190 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Corner Radius (mm) | 1.20 |
| Hole Diameter (mm) | 5.00 |
| Hole Diameter (Decimal Inch) | 0.1970 |
| Relief Angle | 0.000 |
| Rake Angle | 15 |
| Coating Process | CVD |
| Included Angle | 120 |
| Shape | Hexagon |
| Insert Hand | Neutral |
| Chipbreaker | GE |
| Manufacturers Catalog Number | HNHX53ANSNGE |
