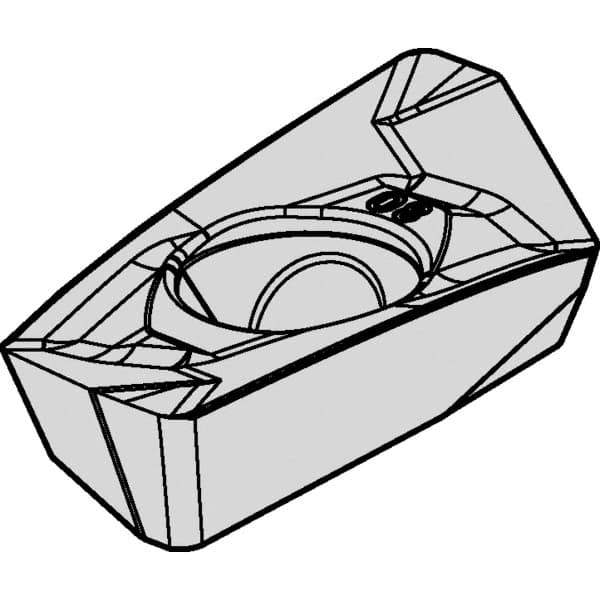

Kennametal - EP1812 GD Grade KCPM40 Carbide Milling Insert - TiAlN/AlCrN Finish, 0.2165" Thick, 3/64" Corner Radius
Item #: 68466325
Brand: Kennametal
Model #: 5545401
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | EP |
| Insert Size | 1812 |
| Material | Carbide |
| Manufacturer's Grade | KCPM40 |
| Coating | TiAlN/AlCrN |
| Width (Decimal Inch) | 0.4290 |
| Length (Decimal Inch) | 0.8570 |
| Thickness (Decimal Inch) | 0.2165 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Corner Radius (mm) | 1.20 |
| Relief Angle | 15.000 |
| Rake Angle | 15 |
| Coating Process | PVD |
| Included Angle | 70 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | GD |
| ISO Number | EDPT180512PDSRGD |
| ANSI Number | EP1812S |
