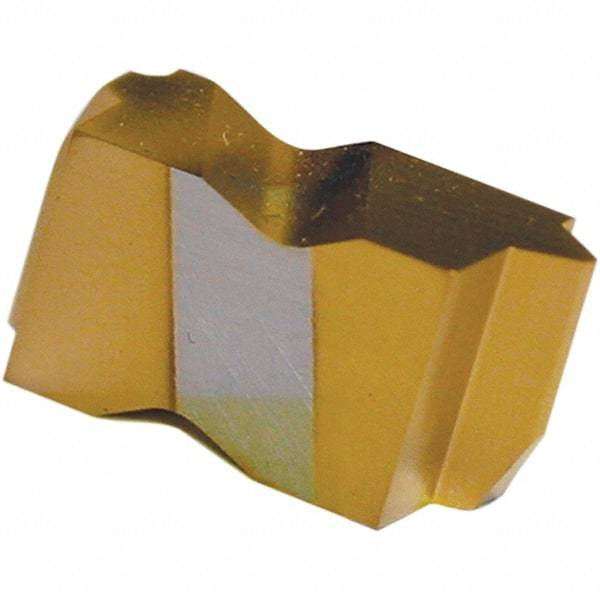

Tool-Flo - 3FLV Grade AC50C, Carbide Grooving Insert - 0.087" Max Depth of Cut, Right Hand, 0.012" Corner Radius, AlTiN Finish
Item #: 68354695
Brand: Tool-Flo
Model #: 623800RAC50C
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | FLV |
| Insert Size | 3 |
| Material | Carbide |
| Maximum Depth of Cut (Decimal Inch) | 0.0870 |
| Manufacturer's Grade | AC50C |
| Coating | AlTiN |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Cutting Height (Decimal Inch) | 0.3440 |
| Multi-Use Tool | No |
| Corner Radius (Decimal Inch) | 0.0120 |
| Coating Process | PVD |
| Series | Flo-Lock |
| Manufacturers Catalog Number | FLV-3RJ |
| Insert Thickness (Decimal Inch) | 0.1950 |
