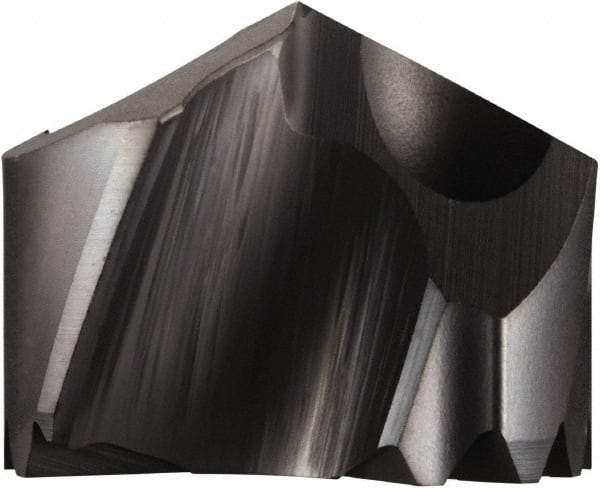

DORMER - Series R950, 11/16" Diam 140° Replaceable Drill Tip - Carbide, TiAlN Finish, Through Coolant
Item #: 63653901
Brand: DORMER
Model #: 0012239
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Diameter (mm) | 17.46 |
| Diameter (Decimal Inch) | 0.6874 |
| Diameter (Inch) | 11/16 |
| Included Angle | 140 |
| Material | Carbide |
| Material Grade | Micrograin |
| Series | R950 |
| Coating | TiAlN |
| Through Coolant | Through Coolant |
| Height (mm) | 12.20 |
| Height (Decimal Inch) | 0.4807 |
