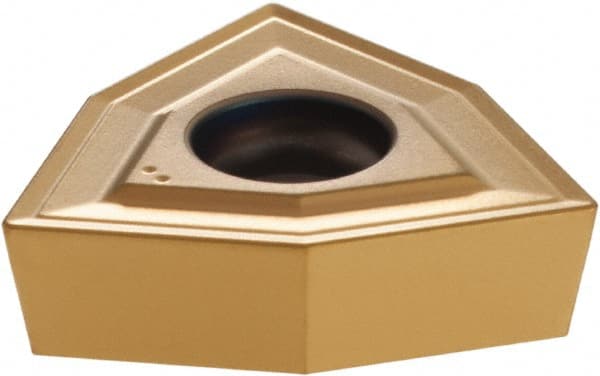

Komet - WOEX 100504-01 BK8425 Carbide Indexable Drill Insert
Item #: 62477005
Brand: Komet
Model #: W2950010048425
Product Specifications
| Insert Style | WOEX |
| Insert Size | 100504 |
| Material | Carbide |
| Manufacturer's Grade | BK8425 |
| Inscribed Circle (mm) | 15.00 |
| Inscribed Circle (Decimal Inch) | 0.5906 |
| Length (mm) | 9.90 |
| Length (Decimal Inch) | 0.3898 |
| Thickness (mm) | 5.30 |
| Thickness (Decimal Inch) | 0.2087 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Shape | Trigon |
| Relief Angle | 8 |
| Included Angle | 84 |
| Coating | TiAlN/TiN |
| Coating Process | PVD |
| Cutting Direction | Neutral |
| Chipbreaker | 01 |
