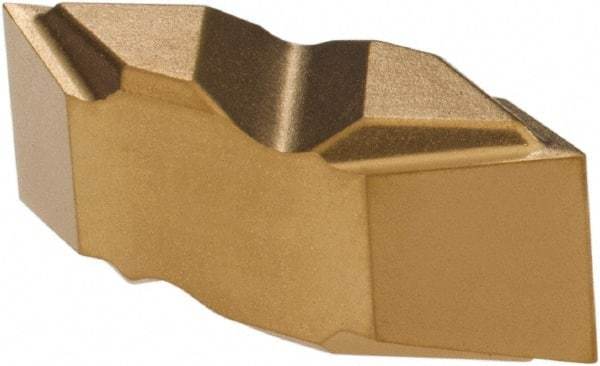

Kennametal - NTU4 Grade KC850, External Partial Profile 60° Threading Insert - 1.25 to 6.25mm & 4 to 20 TPI Ext Pitch, Right Hand Insert, TiC/TiCN/TiN Finish, Carbide
Item #: 62200381
Brand: Kennametal
Model #: 1183781
Exact Tooling IR#: 04
Features and Benefits
TiN/TiCN/TiC is a multi-layered coating designed to increase tool life. It is commonly used at high cutting speeds for smoothing and finishing of the workpiece.
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | NTU |
| Insert Size | 4 |
| Thread Type | External |
| Insert Hand | Right Hand |
| Thread Standard | Partial Profile 60 Degrees |
| Material Grade | C5/C6 |
| Manufacturer's Grade | KC850 |
| External Pitch/TPI | 1.25-6.25 mm; 4-20 TPI |
| Coating | TiC/TiCN/TiN |
| Material | Carbide |
| Coating Process | CVD |
| Corner Radius (mm) | 0.11 |
| Corner Radius (Decimal Inch) | 0.0043 |
| Series | Top Notch |
| Included Angle of Threading Tip | 60 |
| Tip to Top of Insert (mm) | 3.18 |
| Tip to Top of Insert (Decimal Inch) | 0.1252 |
