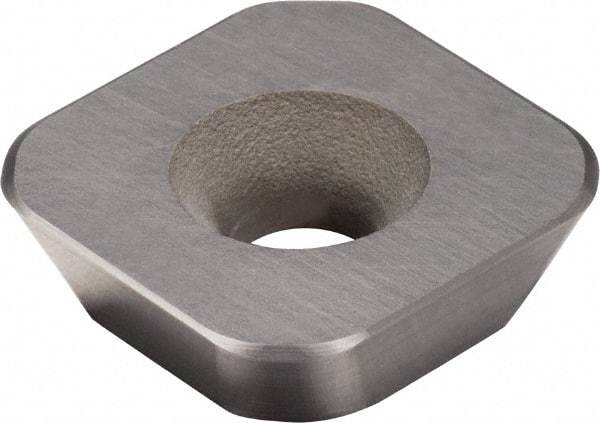

Sandvik Coromant - R24512T3 E Grade CD10 Diamond Tipped Milling Insert - Uncoated, 5/32" Thick, 13.4mm Inscribed Circle, 1.5mm Corner Radius
Item #: 61071932
Brand: Sandvik Coromant
Model #: 5743943
Exact Tooling IR#: 04
Features and Benefits
Diamond tips are one of the hardest cutting materials. It is brazed onto a carbide insert. Commonly used at high cutting speeds on non-ferrous metals.
| Product Specifications | |
|---|---|
| Insert Style | R245 |
| Insert Size | 12T3 |
| Material | Diamond Tipped |
| Manufacturer's Grade | CD10 |
| Coating | Uncoated |
| Length (mm) | 3.50 |
| Inscribed Circle (mm) | 13.40 |
| Inscribed Circle (Decimal Inch) | 0.5276 |
| Thickness (mm) | 3.97 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Decimal Inch) | 0.0591 |
| Corner Radius (mm) | 1.50 |
| Hole Diameter (mm) | 4.10 |
| Hole Diameter (Decimal Inch) | 0.1614 |
| Coating Process | PCD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Right Hand |
| Chipbreaker | E |
| Maximum Depth of Cut (mm) | 2.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0984 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | R245-12 T3 E CD10 |
