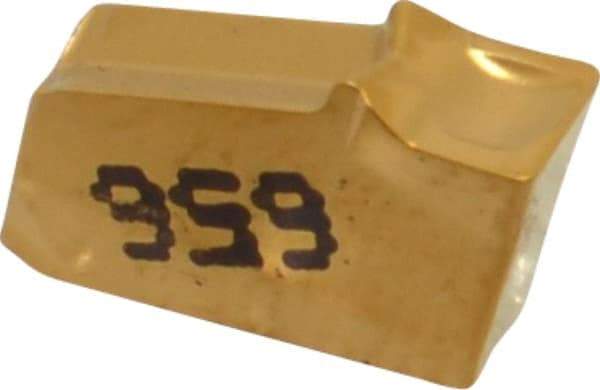

Iscar - 3GFF Grade IC656, 3mm Cutting Width Carbide Cut-Off Insert - Right Hand, 0.3mm Corner Radius, TiC/TiCN/TiN Finish
Item #: 60790573
Brand: Iscar
Model #: 6000025
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GFF |
| Insert Size | 3 |
| Material | Carbide |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Material Grade | C5/C6 |
| Manufacturer's Grade | IC656 |
| Coating | TiC/TiCN/TiN |
| Insert Hand | Right Hand |
| Relief Angle | 7 |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.30 |
| Corner Radius (Decimal Inch) | 0.0118 |
| Coating Process | CVD |
| Manufacturers Catalog Number | GFF 3R |
