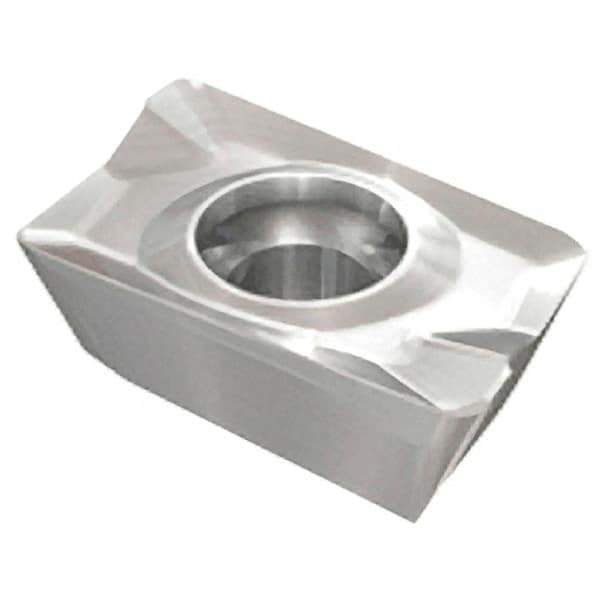

Iscar - ADKT1505 RM Grade DT7150 Carbide Milling Insert - Al2O3/TiAlN Finish, 0.2217" Thick, 1mm Corner Radius
Item #: 60492949
Brand: Iscar
Model #: 5605403
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ADKT |
| Insert Size | 1505 |
| Material | Carbide |
| Manufacturer's Grade | DT7150 |
| Coating | Al2O3/TiAlN |
| Width (Decimal Inch) | 0.3756 |
| Length (Decimal Inch) | 0.6200 |
| Thickness (Decimal Inch) | 0.2217 |
| Corner Radius (Decimal Inch) | 0.0394 |
| Corner Radius (mm) | 1.00 |
| Relief Angle | 15.000 |
| Rake Angle | 12 |
| Coating Process | PVD/CVD |
| Included Angle | 85 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | RM |
| Maximum Depth of Cut (mm) | 13.90 |
| Maximum Depth of Cut (Decimal Inch) | 0.5472 |
| ISO Number | ADKT 1505PDTR-RM |
