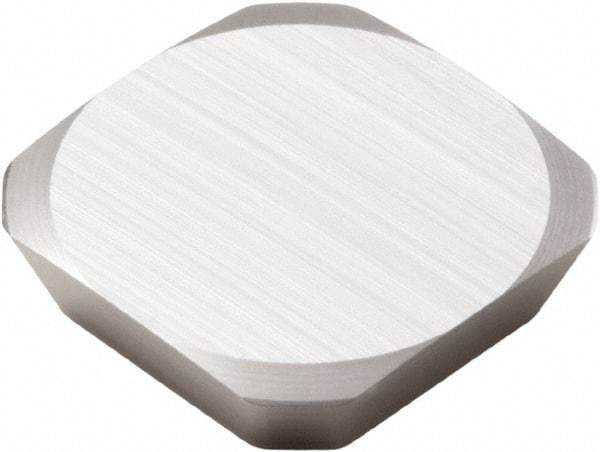

Seco - SEEX42 MD14 Grade H15 Carbide Milling Insert - Uncoated, 1/8" Thick, 1/2" Inscribed Circle
Item #: 60176013
Brand: Seco
Model #: 36744
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SEEX |
| Insert Size | 42 |
| Material | Carbide |
| Manufacturer's Grade | H15 |
| Coating | Uncoated |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Relief Angle | 20.000 |
| Rake Angle | 0 |
| Rake | Neutral |
| Included Angle | 90 |
| Shape | Square |
| Chipbreaker | MD14 |
| Manufacturers Catalog Number | SEEX 42AFTN-MD14 |
