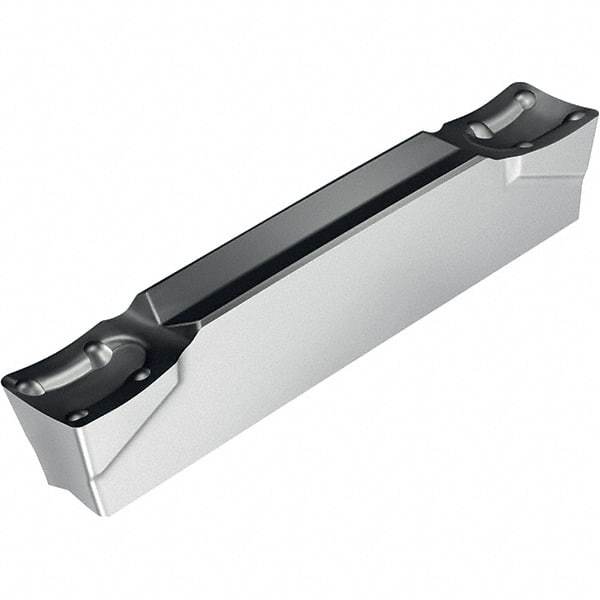

Walter - 2GX09 GD3 Grade WKP23S, 3mm Cutting Width Carbide Grooving Insert - 9mm Max Depth of Cut, Neutral, 0.3mm Corner Radius, Al2O3/TiN Finish
Item #: 59300434
Brand: Walter
Model #: 6529684
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GX09 |
| Insert Size | 2 |
| Material | Carbide |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1180 |
| Maximum Depth of Cut (mm) | 9.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3540 |
| Manufacturer's Grade | WKP23S |
| Coating | Al2O3/TiN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 2.54 |
| Cutting Height (Decimal Inch) | 0.1000 |
| Lead Angle | 90 |
| Chipbreaker | GD3 |
| Multi-Use Tool | Yes |
| Corner Radius (mm) | 0.30 |
| Corner Radius (Decimal Inch) | 0.0120 |
| Coating Process | CVD |
| Overall Length (mm) | 9.00 |
| Overall Length (Decimal Inch) | 0.3540 |
| Series | GX09 |
| Rake | Positive |
| Overall Width (mm) | 3.00 |
| Overall Width (Decimal Inch) | 0.1180 |
