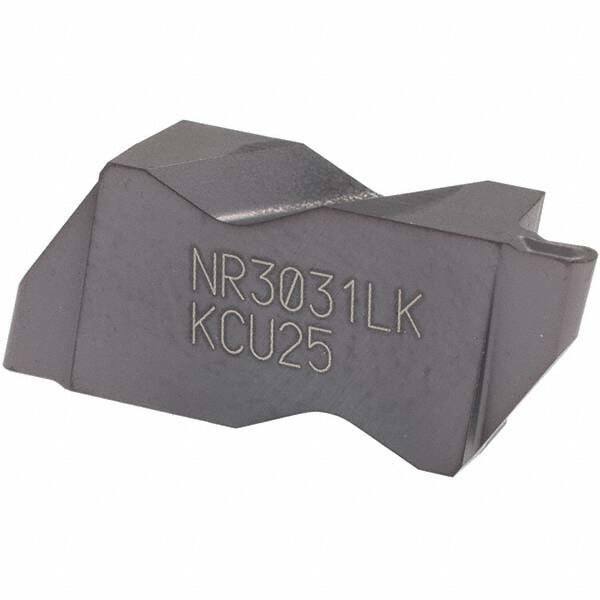

Kennametal - 3031NR K Grade KCU25, 1.58mm Cutting Width Carbide Grooving Insert - 2.39mm Max Depth of Cut, Left Hand, 0.79mm Corner Radius, AlTiN Finish
Item #: 58501453
Brand: Kennametal
Model #: 4109906
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | NR |
| Insert Size | 3031 |
| Material | Carbide |
| Cutting Width (mm) | 1.58 |
| Cutting Width (Decimal Inch) | 0.0622 |
| Maximum Depth of Cut (mm) | 2.39 |
| Maximum Depth of Cut (Decimal Inch) | 0.0941 |
| Material Grade | C2/C6 |
| Manufacturer's Grade | KCU25 |
| Coating | AlTiN |
| Insert Hand | Left Hand |
| Cutting Height (mm) | 8.74 |
| Cutting Height (Decimal Inch) | 0.3440 |
| Insert Seat Size | 3 |
| Chipbreaker | K |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.79 |
| Corner Radius (Decimal Inch) | 0.0311 |
| Coating Process | PVD |
| Overall Length (mm) | 22.46 |
| Overall Length (Decimal Inch) | 0.8841 |
| Series | Top Notch |
| Overall Width (mm) | 4.98 |
| Overall Width (Decimal Inch) | 0.1960 |
| Included Angle | 55 |
