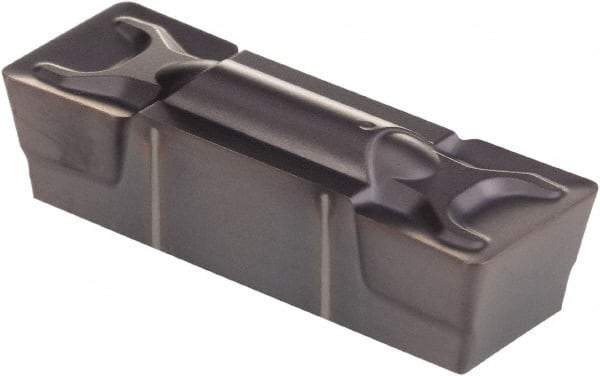

Kennametal - 1005G GMN Grade KCP10, 10.05mm Cutting Width Carbide Grooving Insert - 8.1mm Max Depth of Cut, Neutral, 0.79mm Corner Radius, TiCN/Al2O3 Finish
Item #: 58499393
Brand: Kennametal
Model #: 5069437
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | G |
| Insert Size | 1005 |
| Material | Carbide |
| Cutting Width (mm) | 10.05 |
| Cutting Width (Decimal Inch) | 0.3957 |
| Maximum Depth of Cut (mm) | 8.10 |
| Maximum Depth of Cut (Decimal Inch) | 0.3190 |
| Material Grade | C3/C7 |
| Manufacturer's Grade | KCP10 |
| Coating | TiCN/Al2O3 |
| Insert Hand | Neutral |
| Cutting Height (mm) | 8.70 |
| Cutting Height (Decimal Inch) | 0.3425 |
| Insert Seat Size | 10 |
| Chipbreaker | GMN |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Turning |
| Corner Radius (mm) | 0.79 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Coating Process | CVD |
| Overall Length (mm) | 30.00 |
| Overall Length (Decimal Inch) | 1.1810 |
| Series | A4 |
| Included Angle | 90 |
