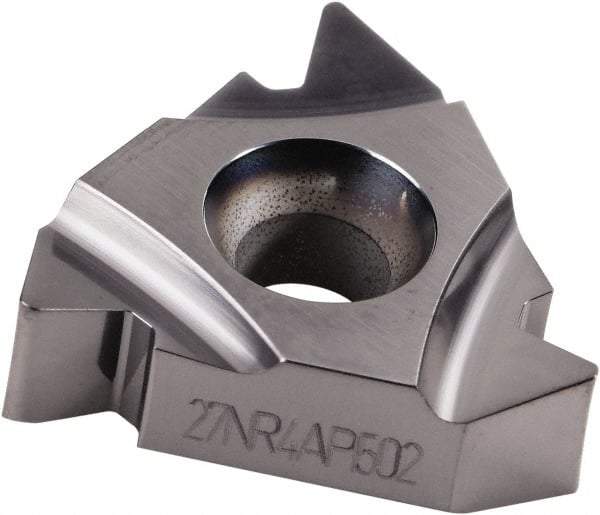

Kennametal - 27NR Internal Right Hand 4 API Rotary Shoulder Connections Laydown Threading Insert - Grade KC5025, AlTiN Coated Carbide, 15.88mm Inscribed Circle
Item #: 58492158
Brand: Kennametal
Model #: 3856327
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | 27NR |
| Insert Hand | Right Hand |
| Thread Type | Internal |
| Thread Standard | API Rotary Shoulder Connections |
| Manufacturer's Grade | KC5025 |
| Threads Per Inch | 4 |
| Inscribed Circle (mm) | 15.88 |
| Inscribed Circle (Inch) | 5/8 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Thickness (Decimal Inch) | 0.2456 |
| Thickness (mm) | 6.24 |
| Hole Diameter (mm) | 6.00 |
| Hole Diameter (Decimal Inch) | 0.2362 |
| Coating | AlTiN |
| Coating Process | PVD |
| Corner Radius (mm) | 0.66 |
| Corner Radius (Decimal Inch) | 0.0260 |
