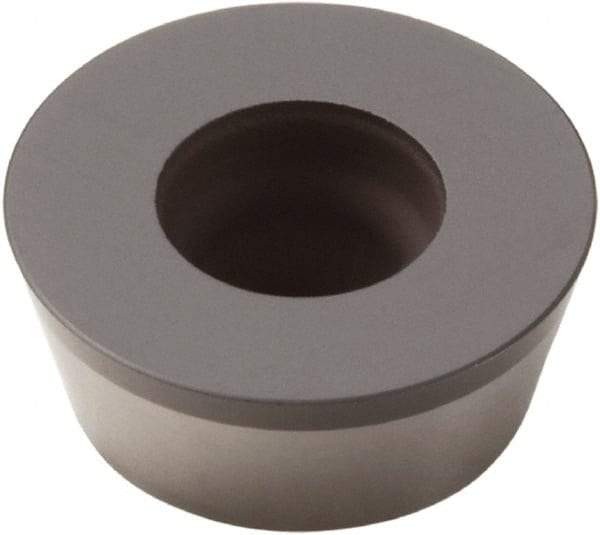

Seco - RDHW0803M0 M18 Grade CBN200 CBN Milling Insert - Uncoated, 0.1563" Thick, 10mm Inscribed Circle
Item #: 56995103
Brand: Seco
Model #: 34534
Exact Tooling IR#: 04
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Insert Style | RDHW |
| Insert Size | 0803M0 |
| Material | CBN |
| Manufacturer's Grade | CBN200 |
| Coating | Uncoated |
| Inscribed Circle (mm) | 10.00 |
| Inscribed Circle (Decimal Inch) | 0.3937 |
| Thickness (Decimal Inch) | 0.1563 |
| Relief Angle | 15.000 |
| Rake Angle | 0 |
| Rake | Neutral |
| Shape | Round |
| Chipbreaker | M18 |
| ISO Number | RDHW 0803M0S-01030-LF |
