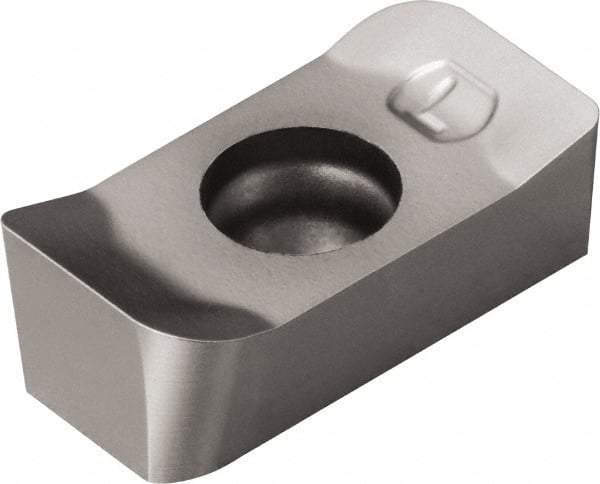

Sandvik Coromant - L331.1A145030 WL Grade 1040 Carbide Milling Insert - TiAlN2 Finish, 4.95mm Thick, 14mm Inscribed Circle, 3mm Corner Radius
Item #: 54941695
Brand: Sandvik Coromant
Model #: 5907127
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | L331.1A |
| Insert Size | 145030 |
| Material | Carbide |
| Manufacturer's Grade | 1040 |
| Coating | TiAlN2 |
| Width (mm) | 11.50 |
| Width (Decimal Inch) | 0.4528 |
| Inscribed Circle (mm) | 14.00 |
| Inscribed Circle (Decimal Inch) | 0.5512 |
| Thickness (mm) | 4.95 |
| Thickness (Decimal Inch) | 0.1949 |
| Corner Radius (Decimal Inch) | 0.1181 |
| Corner Radius (mm) | 3.00 |
| Hole Diameter (mm) | 4.60 |
| Hole Diameter (Decimal Inch) | 0.1811 |
| Relief Angle | 0.000 |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Rectangle |
| Insert Hand | Left Hand |
| Chipbreaker | WL |
| Maximum Depth of Cut (mm) | 13.70 |
| Maximum Depth of Cut (Decimal Inch) | 0.5394 |
| Cutting Edge Style | Sharp |
| Manufacturers Catalog Number | 5907127 |
| ISO Number | L331.1A-14 50 30H-WL 1040 |
