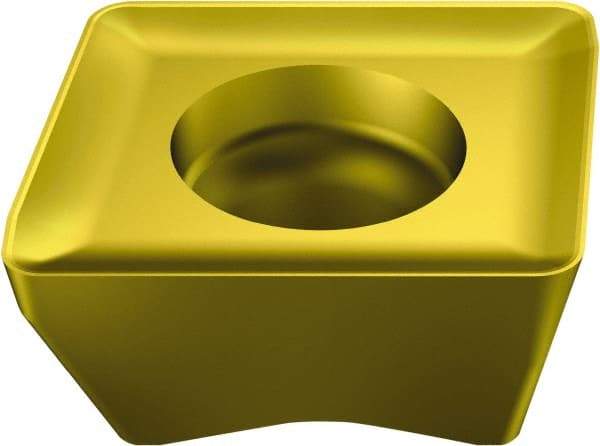

Sandvik Coromant - 690100531 SL Grade S40T Carbide Milling Insert - TiCN/Al2O3/TiN Finish, 5.2mm Thick, 10mm Inscribed Circle, 3.1mm Corner Radius
Item #: 54939756
Brand: Sandvik Coromant
Model #: 5853423
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 690 |
| Insert Size | 100531 |
| Material | Carbide |
| Manufacturer's Grade | S40T |
| Coating | TiCN/Al2O3/TiN |
| Width (mm) | 10.00 |
| Width (Decimal Inch) | 0.3937 |
| Inscribed Circle (mm) | 10.00 |
| Inscribed Circle (Decimal Inch) | 0.3937 |
| Thickness (mm) | 5.20 |
| Thickness (Decimal Inch) | 0.2047 |
| Corner Radius (Decimal Inch) | 0.1220 |
| Corner Radius (mm) | 3.10 |
| Hole Diameter (mm) | 4.50 |
| Hole Diameter (Decimal Inch) | 0.1772 |
| Relief Angle | 11.000 |
| Coating Process | CVD |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | SL |
| Cutting Edge Style | ER Treated |
| Manufacturers Catalog Number | 5853423 |
| ISO Number | 690-100531M-E-SL S40T |
