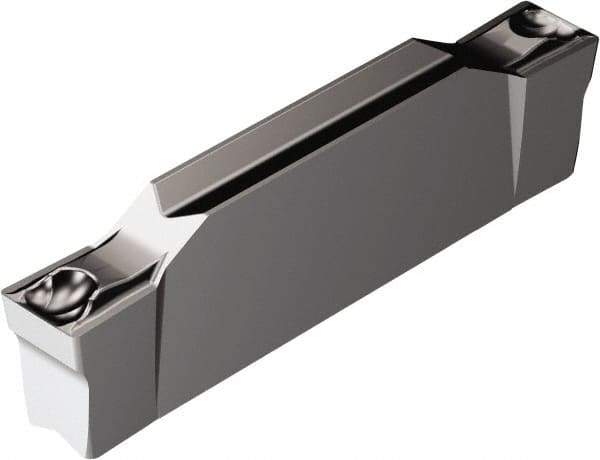

Sandvik Coromant - G2N123 GF Grade 1105, 3.61mm Cutting Width Carbide Grooving Insert - 19.1mm Max Depth of Cut, Neutral, 0.3mm Corner Radius, TiAlN2 Finish
Item #: 54898127
Brand: Sandvik Coromant
Model #: 6075364
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N123 |
| Insert Size | G2 |
| Material | Carbide |
| Cutting Width (mm) | 3.61 |
| Cutting Width (Decimal Inch) | 0.1421 |
| Maximum Depth of Cut (mm) | 19.10 |
| Maximum Depth of Cut (Decimal Inch) | 0.7520 |
| Manufacturer's Grade | 1105 |
| Coating | TiAlN2 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Lead Angle | 0 |
| Relief Angle | 7 |
| Insert Seat Size | G |
| Chipbreaker | GF |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting |
| Corner Radius (mm) | 0.30 |
| Corner Radius (Decimal Inch) | 0.0118 |
| Coating Process | PVD |
| Series | CoroCut 1-2 |
| ISO Number | N123G203610003GF1105 |
| Manufacturers Catalog Number | 6075364 |
| Insert Thickness (Decimal Inch) | 0.1693 |
| Insert Thickness (mm) | 4.3000 |
