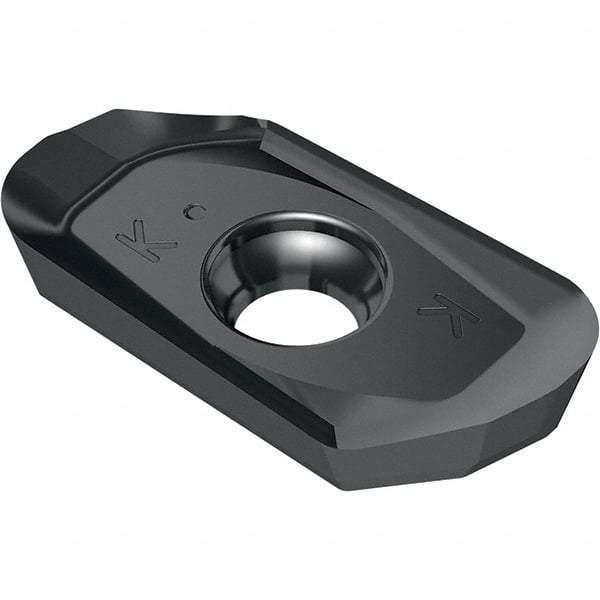

Walter - K85 Grade WNN15 Milling Insert - 5.56mm Thick, 2mm Corner Radius
Item #: 54830393
Brand: Walter
Model #: 6765306
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Manufacturer's Grade | WNN15 |
| Width (mm) | 14.00 |
| Width (Decimal Inch) | 0.5510 |
| Length (mm) | 21.20 |
| Length (Decimal Inch) | 0.8350 |
| Inscribed Circle (mm) | 0.00 |
| Inscribed Circle (Decimal Inch) | 0.0000 |
| Thickness (mm) | 5.56 |
| Thickness (Decimal Inch) | 0.2190 |
| Corner Radius (Decimal Inch) | 0.0790 |
| Corner Radius (mm) | 2.00 |
| Hole Diameter (mm) | 5.60 |
| Hole Diameter (Decimal Inch) | 0.2200 |
| Relief Angle | 15.000 |
| Coating Process | PVD |
| Insert Hand | Right Hand |
| Chipbreaker | K85 |
| Maximum Depth of Cut (mm) | 21.20 |
| Maximum Depth of Cut (Decimal Inch) | 0.8350 |
| Manufacturers Catalog Number | ZDGT200520R-K85 WNN15 |
